Designing Mobile Dashboards

    • To add a connection in dashboard design use QaaWS

    1 QAAWS web method.png

    • When selecting your methods you will see them all duplicated, use the QaaWS method

    2 Web method drop down.png

    • Ensure the 'login' and 'password' fields are populated with either a cell reference, or hard coded with text. This just needs to be data, it cannot be blank. 'Test' works in both cells.
      Input Param Values QAAWS.png

    • Build your dashboards in exactly the same way as before, but pay attention to the mobile compatibility window as not all components are fully supported yet by Dashboard Design

    3 mobile compatibility window.png

    • From your start bar launch the DataConnect Mobile Dashboard Capture

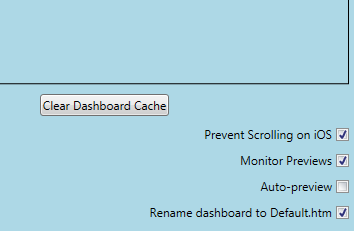

    •  Ensure monitor previews is turned on

    4 preview monitoring.png

    • Preview dashboard in one of the mobile modes

    5 mobile preview.png

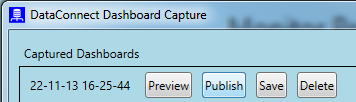

    • Use the publish button in the capture tool to publish to wwwroot, as you usually would

    6 Dashboard publishing.png
